When it comes to piping, understanding the weight of your materials is essential. This is especially true for Alloy 20 pipes, which are known for their excellent resistance to corrosion and are widely used in various industries. In this guide, we’ll explore how to calculate the weight of Alloy 20 pipes with ease using a pipe weight calculator, charts, and some basic formulas.
Alloy 20, also known as Carpenter 20, is an austenitic stainless steel that offers outstanding resistance to sulfuric acid. This makes it an ideal choice for industries such as chemical processing, petrochemicals, and pharmaceuticals. Knowing the weight of these pipes is crucial for logistics, structural integrity, and project planning.
Why Calculate Pipe Weight?
Calculating pipe weight is important for several reasons:
- Logistics and Transportation: Knowing the weight helps in planning the transportation and handling of pipes. It ensures safety and efficiency in moving materials from one place to another.
- Structural Integrity: The weight of the pipes can affect the structural design of a project. Engineers need accurate weight data to ensure that the supporting structures can bear the load.
- Cost Estimation: Weight is a key factor in determining the cost of pipes. Accurate calculations can help in budgeting and financial planning for projects.
Using a Pipe Weight Calculator

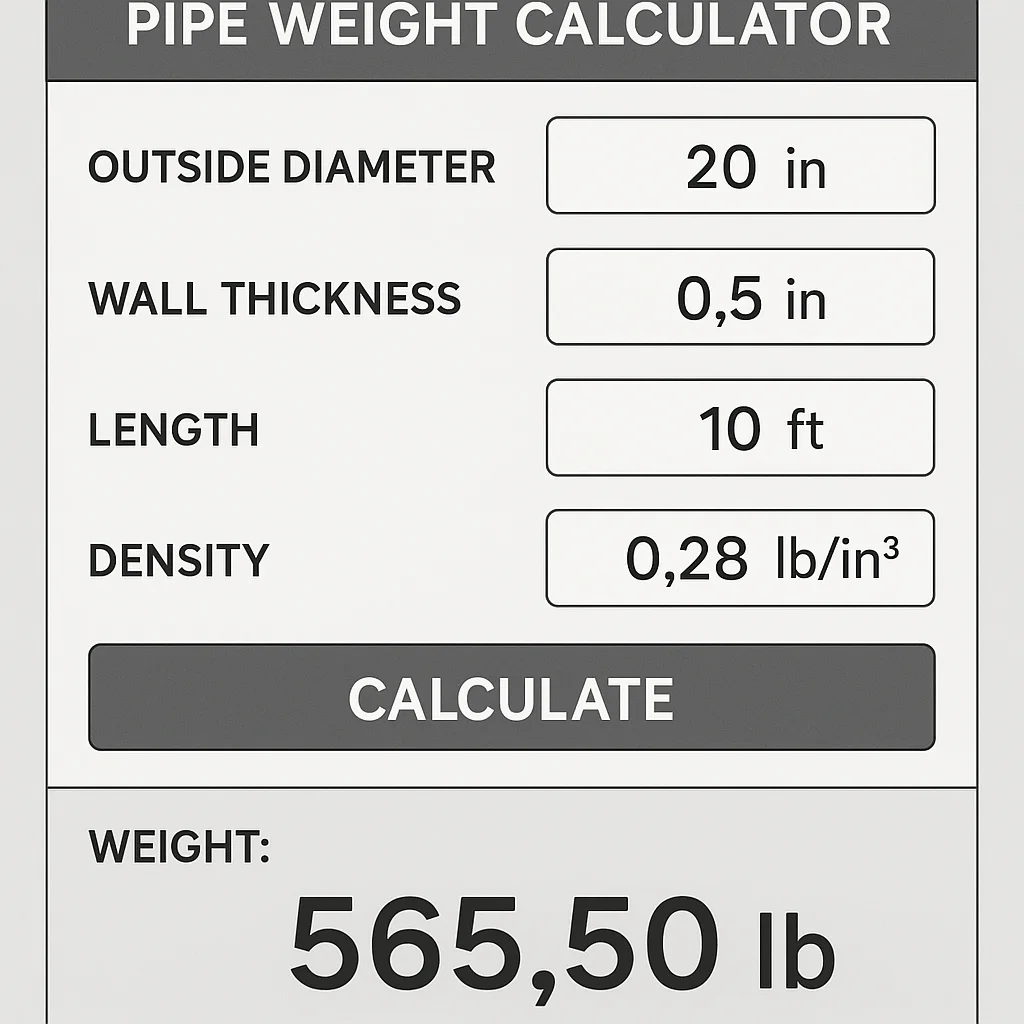

A pipe weight calculator is a digital tool that simplifies the process of determining the weight of pipes. By inputting basic details such as the pipe’s material, diameter, and length, you can quickly get an accurate weight estimate.
Step-by-Step Guide to Using a Pipe Weight Calculator
- Select Material: Choose Alloy 20 from the list of materials. This ensures that the specific density and material properties are factored into the calculation.
- Enter Dimensions: Input the outer diameter, wall thickness, and length of the pipe. These dimensions are critical for an accurate calculation.
- Calculate: Press the “Calculate” button. The tool will provide you with the weight of the pipe based on the input data.
Benefits of Using a Pipe Weight Calculator
- Accuracy: Calculators provide precise weight estimates, reducing the likelihood of errors.
- Efficiency: Quick calculations save time, especially when dealing with multiple pipes.
- User-Friendly: Most calculators are designed with simplicity in mind, making them easy to use even for beginners.
Manual Calculation of Pipe Weight
For those who prefer manual calculations or when digital tools are unavailable, you can calculate pipe weight using a simple formula:
[ \text{Weight (kg)} = \pi \times \left( \frac{\text{Outer Diameter} – \text{Wall Thickness}}{2} \right)^2 \times \text{Wall Thickness} \times \text{Length} \times \text{Density} ]
Where:
- (\pi) is approximately 3.14159
- Outer Diameter and Wall Thickness are measured in meters.
- Length is measured in meters.
- The density for Alloy 20 is approximately 8,080 kg/m³
Example Calculation
Suppose you have an Alloy 20 pipe with:
- Outer Diameter = 0.1 meters
- Wall Thickness = 0.01 meters
- Length = 6 meters
The calculation would be:
[ \text{Weight} = 3.14159 \times \left( \frac{0.1 – 0.01}{2} \right)^2 \times 0.01 \times 6 \times 8080 ]
After performing the math, you would find the weight of the pipe.
Utilizing Pipe Weight Charts
Pipe weight charts provide a quick reference for determining the weight of pipes based on standard dimensions. These charts are typically organized by pipe size and wall thickness, and they list the corresponding weights.
How to Read a Pipe Weight Chart
- Locate the Size: Find the nominal pipe size in the chart.
- Check Wall Thickness: Identify the wall thickness or schedule of your pipe.
- Find the Weight: Cross-reference the size and thickness to find the corresponding weight per unit length.
Advantages of Pipe Weight Charts
- Quick Reference: Ideal for quick checks and comparisons.
- Standardization: Charts are based on standardized measurements, ensuring consistency.
Conclusion
Understanding the weight of Alloy 20 pipes is crucial for various industrial applications. Whether you use a pipe weight calculator, perform manual calculations, or refer to weight charts, having accurate weight data is essential for logistics, structural design, and budgeting. By mastering these methods, you can ensure that your projects are efficient, safe, and cost-effective.
Incorporating these tools and techniques into your workflow will help you make informed decisions and streamline your operations. Whether you’re a seasoned engineer or a project manager, knowing how to calculate pipe weight is an invaluable skill in the world of industrial piping.
