Inconel 718 is a popular nickel-based superalloy renowned for its exceptional strength and high-temperature resistance. This versatile material is widely used across various industries, including aerospace, automotive, and energy, due to its impressive mechanical properties and ability to withstand harsh environments. In this guide, we will explore the composition, properties, applications, and advantages of Inconel 718.
Understanding Inconel 718 Composition
The composition of Inconel 718 is a complex blend of nickel, chromium, iron, niobium, molybdenum, titanium, and aluminum. This unique combination of elements gives Inconel 718 its remarkable properties, including high tensile strength, excellent corrosion resistance, and the ability to maintain its integrity at elevated temperatures.
Chemical Makeup
Inconel 718 is composed of various elements that contribute to its outstanding characteristics. The primary component, Nickel (Ni), makes up 50-55% of the alloy, providing excellent heat resistance and corrosion protection. Chromium (Cr), at 17-21%, enhances its oxidation resistance, crucial for maintaining performance in high-temperature environments.
Iron (Fe) balances the composition, while Niobium (Nb) and Tantalum (Ta) at 4.75-5.5% play a pivotal role in strengthening the alloy by forming hardening phases. Molybdenum (Mo) is present at 2.8-3.3%, contributing to the alloy’s resistance to pitting and crevice corrosion. Titanium (Ti) at 0.65-1.15% and Aluminum (Al) at 0.2-0.8% are essential for precipitating hardening phases, enhancing the material’s mechanical properties.
Interaction of Elements
The interaction between these elements is crucial in determining the final properties of Inconel 718. For instance, the nickel-chromium matrix forms a stable austenitic structure, while the presence of niobium and titanium leads to the formation of gamma prime (γ’) and double prime (γ”) phases. These phases significantly enhance the alloy’s strength and creep resistance.
Moreover, the combination of molybdenum and chromium provides superior resistance to a wide range of corrosive media, including chlorides and acids. This synergy between elements ensures that Inconel 718 remains stable and reliable even in the most demanding conditions. Understanding these interactions enables engineers to tailor the alloy for specific applications, thereby optimizing performance and longevity.
Manufacturing Considerations
The precise composition of Inconel 718 must be carefully controlled during manufacturing to ensure consistent quality and performance. Advanced metallurgical processes, such as vacuum induction melting and vacuum arc remelting, are employed to achieve the desired purity and homogeneity. These processes help minimize impurities that could negatively affect the alloy’s properties.

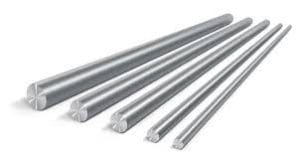

Additionally, the alloy can be produced in various forms, including sheets, plates, bars, and forgings, catering to different industrial needs. Customization of the composition can also be done to meet specific requirements, such as enhancing certain mechanical properties or improving machinability. This flexibility in manufacturing allows Inconel 718 to be tailored to a wide range of applications, making it a highly versatile material.
Key Properties of Inconel 718
The properties of Inconel 718 make it an ideal choice for environments that require durability and reliability. Here are some of its notable attributes:
Mechanical Properties
Inconel 718 exhibits exceptional mechanical properties, making it an ideal choice for high-stress applications. Its high tensile strength, which remains consistent up to temperatures of 1300°F (704°C), ensures that the alloy can withstand significant loads without deformation. This strength is complemented by its excellent fatigue resistance, allowing it to perform well under cyclic loading conditions, which is essential for components subjected to repeated stress.
The alloy’s ability to maintain its mechanical integrity under high stress and elevated temperatures is due to its unique microstructure. The presence of gamma prime and double prime phases provides additional strengthening, enhancing its ability to resist deformation and creep over extended periods. These characteristics make Inconel 718 particularly valuable in aerospace applications, where components are exposed to extreme conditions.
Thermal Properties
Inconel 718’s thermal properties are crucial for its performance in high-temperature environments. The alloy exhibits high-temperature stability, retaining its mechanical properties even when exposed to extreme heat. This stability is crucial for components that undergo thermal cycling, as it prevents deformation and maintains their structural integrity.
The Coefficient of Thermal Expansion (CTE) of Inconel 718 is relatively low, minimizing expansion and contraction during temperature fluctuations. This property is essential for maintaining tight tolerances in precision applications, such as turbine blades and engine components. By ensuring minimal dimensional changes, the alloy helps prevent mechanical failures and enhances the overall reliability of systems operating under thermal stress.
Corrosion Resistance
Inconel 718 is renowned for its exceptional corrosion resistance, making it suitable for use in harsh chemical environments. The alloy’s composition provides a robust defense against various forms of corrosion, including oxidation, sulfidation, and pitting. This resistance is crucial for components exposed to aggressive media, such as those found in the oil and gas industry or chemical processing plants.
The presence of chromium, molybdenum, and nickel in the alloy ensures that it can withstand exposure to corrosive agents without significant degradation. This property not only extends the lifespan of components but also reduces maintenance costs and downtime. As a result, Inconel 718 is a preferred choice for applications where reliability and longevity are paramount.
Applications of Inconel 718
Inconel 718’s properties make it a popular choice for several critical applications. Here are some industries and uses where Inconel 718 plays a crucial role:
Aerospace
In the aerospace industry, Inconel 718 is indispensable due to its ability to withstand extreme temperatures and stresses. It is commonly used in gas turbines, where components such as turbine blades, discs, and shafts must withstand high rotational speeds and thermal loads. The alloy’s high strength-to-weight ratio also makes it an ideal choice for these applications, ensuring optimal efficiency and performance.
Rocket engines are another area where Inconel 718 excels. The alloy’s heat resistance and mechanical integrity at elevated temperatures are crucial for engine components exposed to intense thermal and mechanical stresses during launch and flight. Its ability to maintain performance in these harsh conditions makes it a preferred material for aerospace engineers striving for reliability and safety.
Automotive
The automotive industry benefits from Inconel 718’s properties in high-performance applications. Turbocharger rotors made from this alloy can withstand the high temperatures and pressures generated during operation, enhancing the efficiency and durability of turbocharged engines. Inconel 718’s resistance to thermal fatigue ensures long-term reliability in these demanding conditions.
Exhaust valves are another critical application in the automotive sector. Inconel 718’s corrosion resistance and ability to maintain mechanical properties under thermal stress make it suitable for exhaust system components. These valves must operate reliably over extended periods, and the alloy’s durability helps minimize maintenance and replacement costs, contributing to overall vehicle performance.
Energy
In the energy sector, Inconel 718 is employed in various applications due to its exceptional properties. In nuclear reactors, the alloy’s excellent radiation resistance and stability at high temperatures make it suitable for critical components that are exposed to intense radiation and high temperatures. Its reliability ensures the safe and efficient operation of nuclear facilities.
In the oil and gas industry, Inconel 718 is used in extraction equipment where resistance to corrosion and high strength are essential. The harsh environments encountered during drilling and extraction demand materials that can withstand aggressive chemicals and mechanical stress. Inconel 718’s robust performance in these conditions makes it a valuable asset in ensuring the efficiency and safety of energy production processes.
Advantages of Inconel 718
Durability and Longevity
Inconel 718’s exceptional mechanical properties contribute to its durability and longevity, reducing the need for frequent replacements and maintenance. The alloy’s ability to withstand extreme conditions without significant degradation ensures that components remain reliable over extended periods of time. This durability not only enhances system performance but also reduces operational costs by minimizing downtime and maintenance efforts.
The longevity of Inconel 718 is particularly beneficial in industries where equipment reliability is critical, such as aerospace and energy. By maintaining its properties under severe conditions, the alloy helps prevent unexpected failures and extends the service life of components. This reliability is a key factor in its widespread adoption across various sectors seeking to optimize performance and minimize costs.
Versatility
The alloy’s versatility allows it to be used in a wide range of applications across different industries, making it a valuable material for engineers and manufacturers. Inconel 718’s adaptability is a result of its unique combination of properties, which can be tailored to meet specific requirements. This flexibility enables its use in diverse applications, from high-temperature aerospace components to corrosion-resistant oil and gas equipment.
Engineers can leverage Inconel 718’s properties to design solutions that address specific challenges, such as thermal stability, mechanical strength, or corrosion resistance. This versatility makes it an attractive choice for projects with varying demands, providing a reliable and effective solution for complex engineering problems.
High-Temperature Performance
Inconel 718’s ability to maintain its properties at high temperatures makes it an ideal choice for applications that involve extreme heat, such as aerospace and power generation. The alloy’s stability under thermal stress ensures that components operate efficiently and safely, even in the most demanding environments. This high-temperature performance is crucial for industries where reliability and safety are paramount.
In applications where thermal cycling is common, Inconel 718’s resistance to thermal fatigue and creep is invaluable. The alloy’s ability to withstand repeated heating and cooling cycles without compromising its integrity ensures long-term performance and reliability. This characteristic is a key factor in its selection for high-temperature applications where failure is not an option.
Challenges with Inconel 718
While Inconel 718 offers numerous advantages, it also presents some challenges that need to be addressed:
Machinability
The alloy’s hardness and toughness can make it difficult to machine, requiring specialized tools and techniques. Machining Inconel 718 demands careful consideration of cutting parameters, tool materials, and cooling methods to achieve precise results. High-speed steels and carbide tools are commonly used, along with techniques such as low cutting speeds and ample cooling to minimize tool wear and deformation.
The machinability challenges are often addressed through advanced machining strategies, such as the use of coated tools and optimized cutting fluids. These approaches help reduce friction and heat generation, improving tool life and surface finish. By overcoming these challenges, manufacturers can produce high-quality components with the desired dimensional accuracy and surface integrity.
Cost
Due to its complex composition and manufacturing process, Inconel 718 can be more expensive than other materials, which may impact project budgets. The cost is influenced by factors such as raw material prices, processing techniques, and the need for specialized equipment. However, the alloy’s superior performance and longevity often justify the initial investment by reducing maintenance and replacement costs over time.
Despite the higher cost, Inconel 718’s benefits in critical applications can outweigh the financial considerations. Its ability to deliver reliable performance in demanding environments makes it a cost-effective choice for projects where failure could result in significant economic or safety consequences. By carefully evaluating the cost-benefit ratio, engineers can make informed decisions about incorporating Inconel 718 into their designs.
Machining and Fabrication of Inconel 718
Tool Selection
When machining Inconel 718, it is crucial to use the correct tools to prevent excessive wear and achieve precise results. High-speed steels and carbide tools are commonly used for this purpose. The choice of tool material is critical, as Inconel 718’s hardness can quickly degrade conventional tools. Carbide tools, with their superior hardness and heat resistance, offer better performance and longevity in machining operations.
In addition to tool material, selecting the appropriate tool geometry is crucial for optimizing cutting performance. Sharp cutting edges and positive rake angles can help reduce cutting forces and improve chip evacuation. Proper tool selection and maintenance are vital for ensuring efficient machining processes and achieving high-quality surface finishes in Inconel 718 components.
Heat Treatment
Inconel 718 can undergo various heat treatments to enhance its mechanical properties, such as solution annealing and aging. These treatments are crucial for developing the desired microstructure, which in turn influences the alloy’s strength, toughness, and resistance to deformation. Solution annealing involves heating the alloy to a specific temperature, holding it to dissolve precipitates, and then rapidly cooling it to retain a homogeneous solid solution.
Aging is a subsequent heat treatment that promotes the precipitation of strengthening phases, such as gamma prime and double prime, which enhance the alloy’s mechanical properties. The aging process involves heating the alloy to a lower temperature and maintaining it for a specified duration, allowing the precipitates to form and grow. By optimizing heat treatment parameters, manufacturers can tailor the properties of Inconel 718 to meet specific application requirements, ensuring optimal performance and longevity.
Conclusion
Inconel 718 is a remarkable alloy that offers unmatched performance in challenging environments. Its unique combination of properties makes it a preferred choice for demanding applications in aerospace, automotive, energy, and more. Understanding the composition, properties, and applications of materials can help you make informed decisions when selecting materials for your projects. By considering the challenges and advantages of Inconel 718, you can optimize its use to achieve exceptional results. Whether you’re designing components for high-temperature systems or seeking materials that offer superior corrosion resistance, Inconel 718 provides a reliable and effective solution for your engineering needs.
